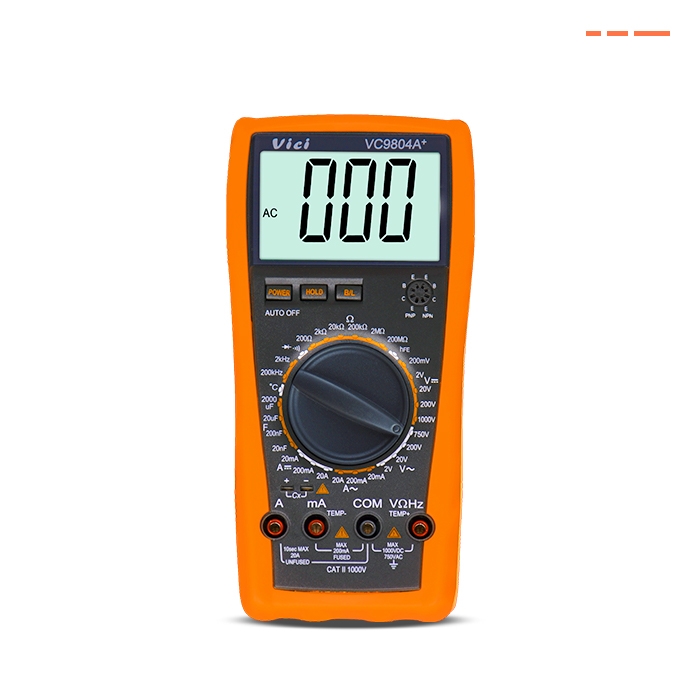

VC9804A+ Max 2000uF capacitance, Max 200MΩ resistance, Frequency, Temperature tests, Anti-high pressure ignition design.

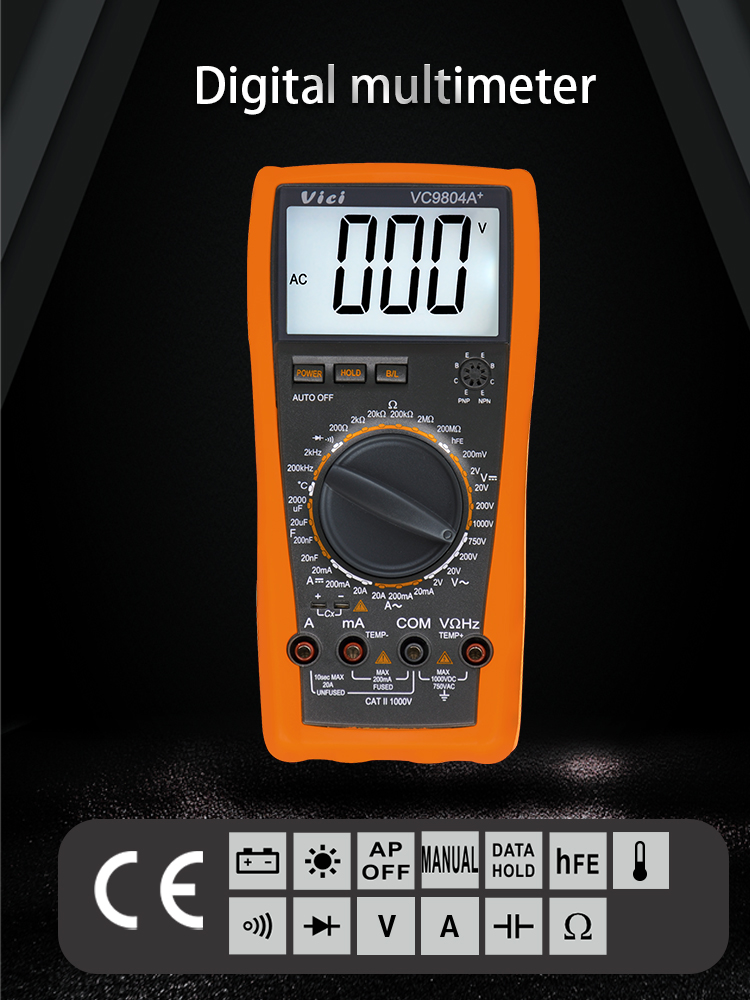

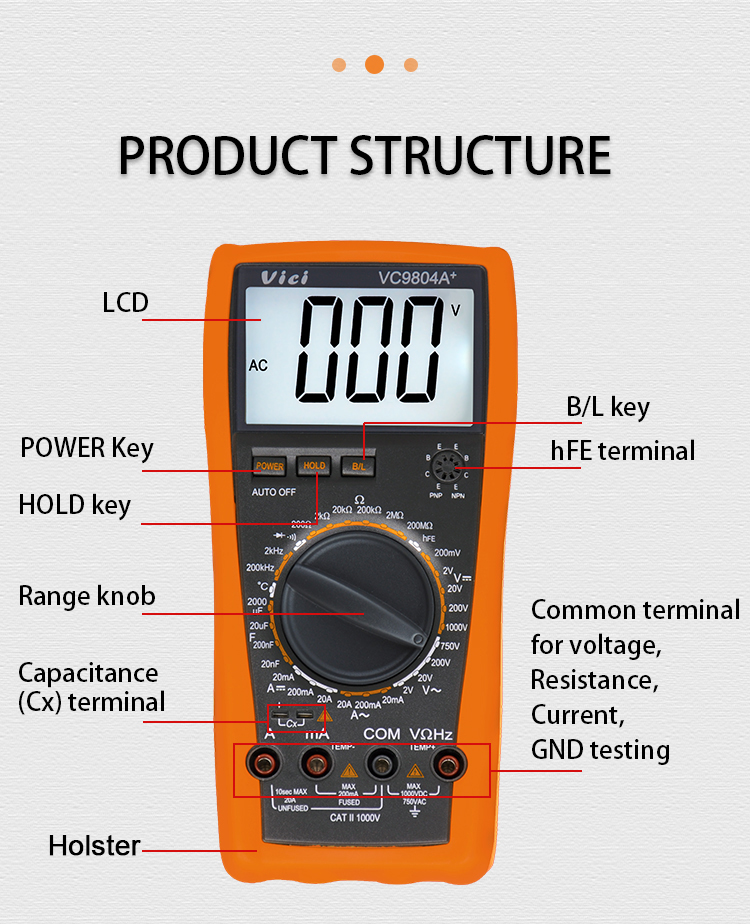

VC9804A+ multimeter, available to test DC voltage, AC voltage, DC current, AC current, Resistance, Capacitance, Frequency, Temperature, hFE, Diode and continuity tests; Designed with unit symbol, backlight display, data hold, auto power and protect function for error operation.
2000 digits display.
2000 digits display.
Technical Data:
|
Basic function |
Range |
Basic accuracy |
|
DCV |
200mV/2V/20V/200V/1000V |
±(0.5%+3) |
|
ACV |
2V/20V/200V/750V |
±(0.8%+5) |
|
DCA |
20mA/200mA/ |
±(0.8%+3) |
|
ACA |
20mA/200mA/ |
±(1.0%+5) |
|
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/200MΩ |
±(0.8%+5) |
|
Capacitance |
20nF/200nF/20uF/2000uF |
±(2.0%+20) |
|
Frequency |
2kHz/200kHz |
±(3.0%+15) |
|
Temperature |
|
±(0.8%+4) |
Special Function:
|
Model |
VC |
|
Diode test |
√ |
|
hFE test |
√ |
|
Continuity alarm |
Approx. less than 30Ω |
|
Low battery indication |
Approx less than 7.5V |
|
Data hold |
√ |
|
Auto power off |
Approx. 30 minutes |
|
Backlight display |
Approx. 10 seconds |
|
Function protection |
√ |
|
Anti-shock protection |
√ |
|
Input impendence |
10MΩ |
|
Sampling rate |
3times/s |
|
AC frequency response |
40-400Hz |
|
Operation way |
Manual range |
|
Max. display |
1999 |
|

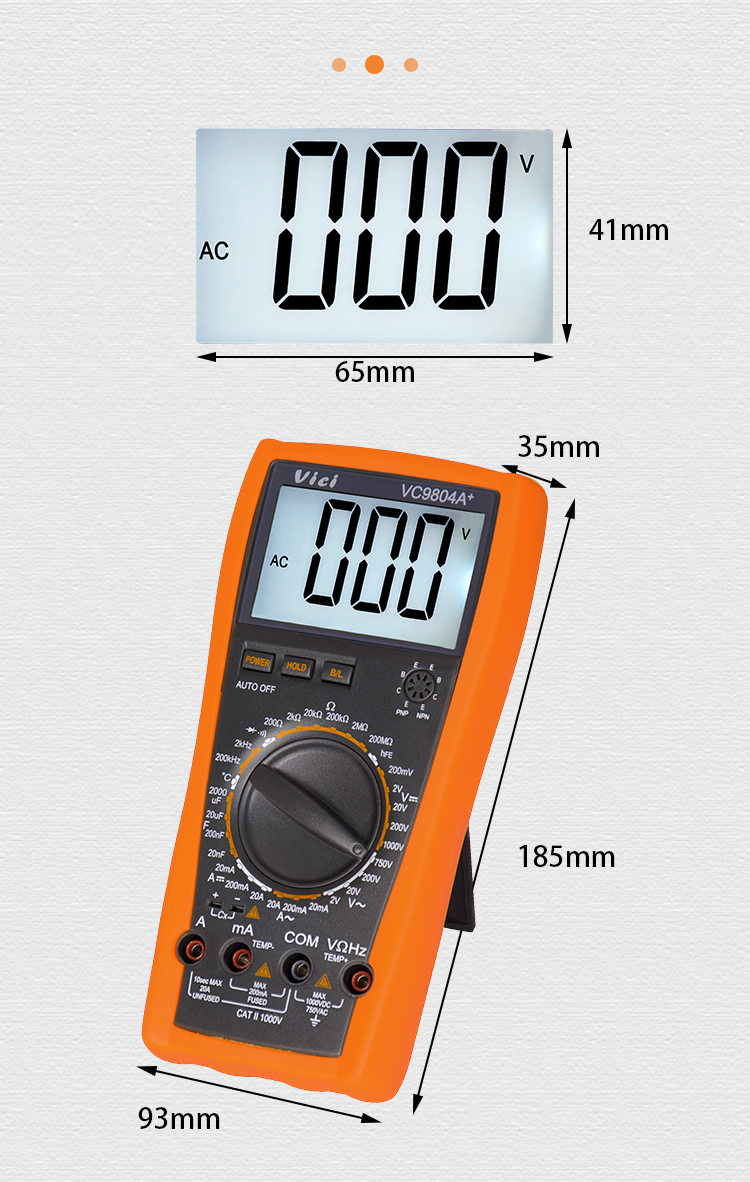

LCD size |
65× |
|
Battery |
9V ( |
|
Power consumption |
Quiescent current approx. 3mA |
