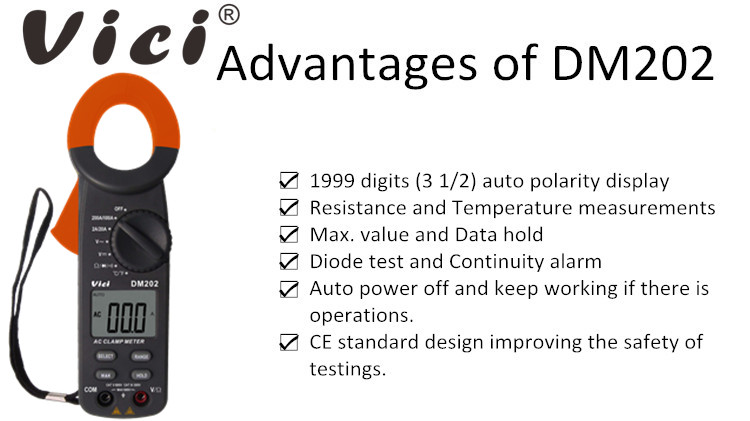

DM202 Clamp open 35mm, True RMS, NCV, Temperature tests, Backlight.

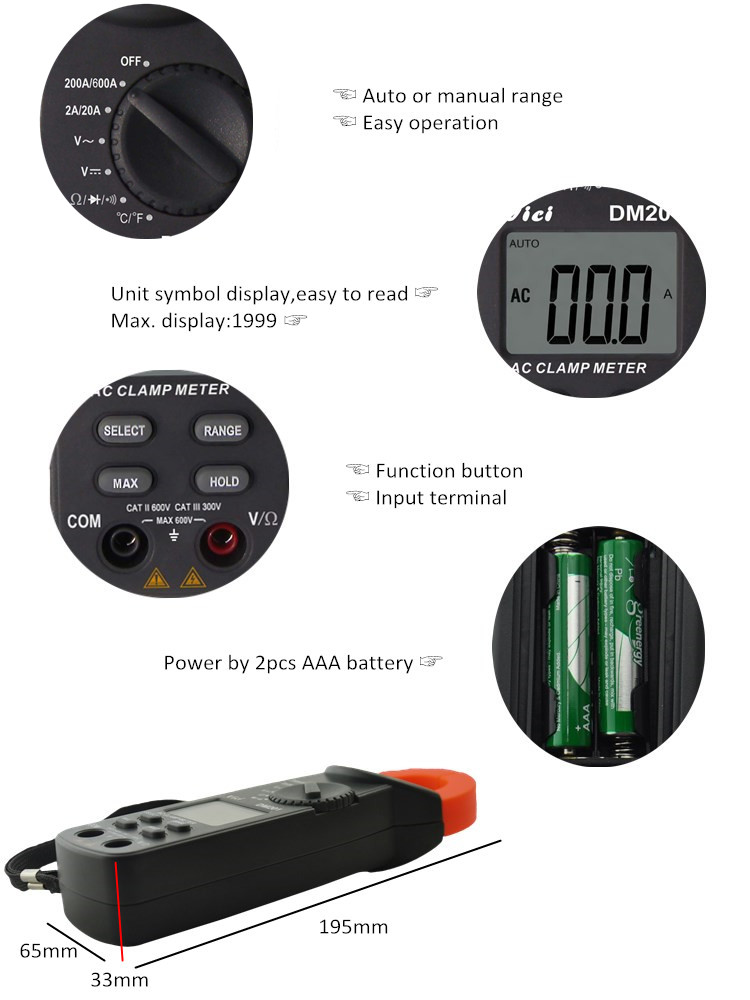

    DM202 clamp meter, available to DC voltage, AC voltage, AC current, resistance, non-contact voltage, temperature, diode and continuity tests; Designed with unit symbol and backlight display, data hold, auto ranging switch, auto power off and alarm functions.
    2000 digits display

    Technical Data:

    Basic function

    Range

    Basic Accuracy

    DCV

    200mV/2V/20V/200V/600V

    +/-  (0.5%+5)

    ACV

    200mV/2V/20V/200V/600V

    +/-  (1.0%+5)

    ACA

    2A/20A/200A/600A

    +/-  (2.0%+5)

    Resistance

    200/2k/20k/200k/2M/20M ohm

    +/-  (0.8%+3)

    Temperature

    (-40 ~ 1000)

    +/-  (1.0%+5)

    (-40 ~ 1832)

    +/-  (1.0%+5)


    Special Function:

    Model

    DM202

    Diode test

    YES

    Continuity alarming

    Less than 30 ohm

    True RMS test

    YES

    NCV test

    YES

    Low battery indication

    Approx. less than2.4 V

    Data hold

    Data hold/Max. hold

    Auto power off

    About 15 minutes

    Function protect

    Full function protection

    Input impedance

    10M ohm

    Sampling rate

    3times /s

    AC frequency response

    Amper 50Hz / Voltage (40-400)Hz

    Operation way

    Manual or auto range

    Max. display

    1999

    Clamp open

    35mm

    Battery

    3V (2*1.5V)
