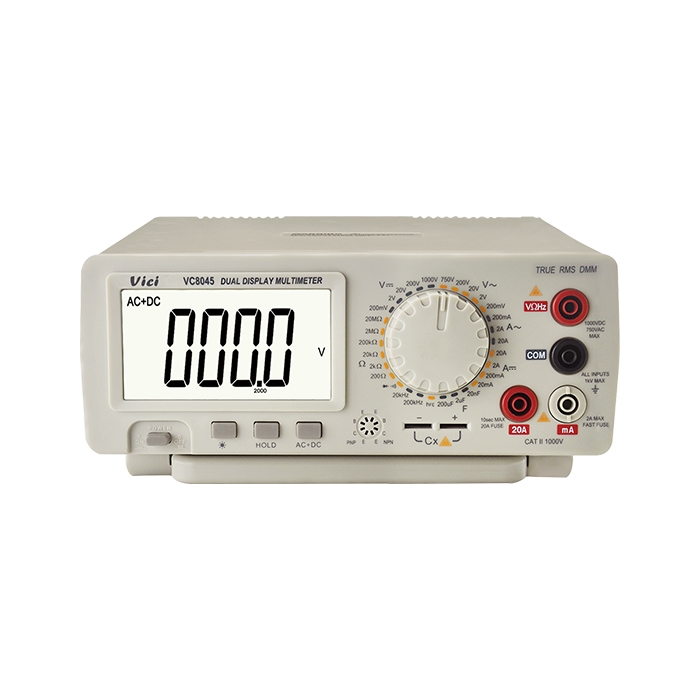

VC8045 Max.19999 digits, High Accuracy Bench Type Multimeter, True RMS, AC +DC measurements, Backlight
This VC8045 bench type multimeter can measure DC voltage, AC voltage, DC current, AC current, Resistance, Capacitance, Diode, Triode, Continuity and Frequency. AC voltage and current are measured by high-precision true RMS, which has the characteristics of measuring frequency bandwidth, and accurately measure the RMS of any waveform of AC or AC+DC.
19999 digits display.
19999 digits display.
Technical Data:
|
Basic function |
Range |
Basic accuracy |
|
DCV |
200mV/2V/20V/200V/1000V |
±(0.05%+1) |
|
ACV |
200mV/2V/20V/200V/750V |
±(0.8%+80) |
|
DCA |
20mA/200mA/ |
±(0.35%+10) |
|
ACA |
200mA/ |
±(0.8%+80) |
|
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
±(0.1%+5) |
|
Frequency |
20kHz/200kHz |
±(1.0%+20) |
|
Capacitance |
20nF/2uF/200uF |
±(3.5%+20) |
Special Function:
|
Model |
VC8045 |
|
Diode test |
√ |
|
hFE test |
√ |
|
True RMS |
√ |
|
Continuity alarm |
√ |
|
Overload protect |
√ |
|
Input impedance |
10MΩ |
|
Sampling rate |
3times/s |
|
AC Frequency response |
40Hz-50kHz |
|
Operation way |
Manual range |
|
Max. display |
19999 |
|
Power supply |
AC 220V/110V 50Hz/60Hz |
