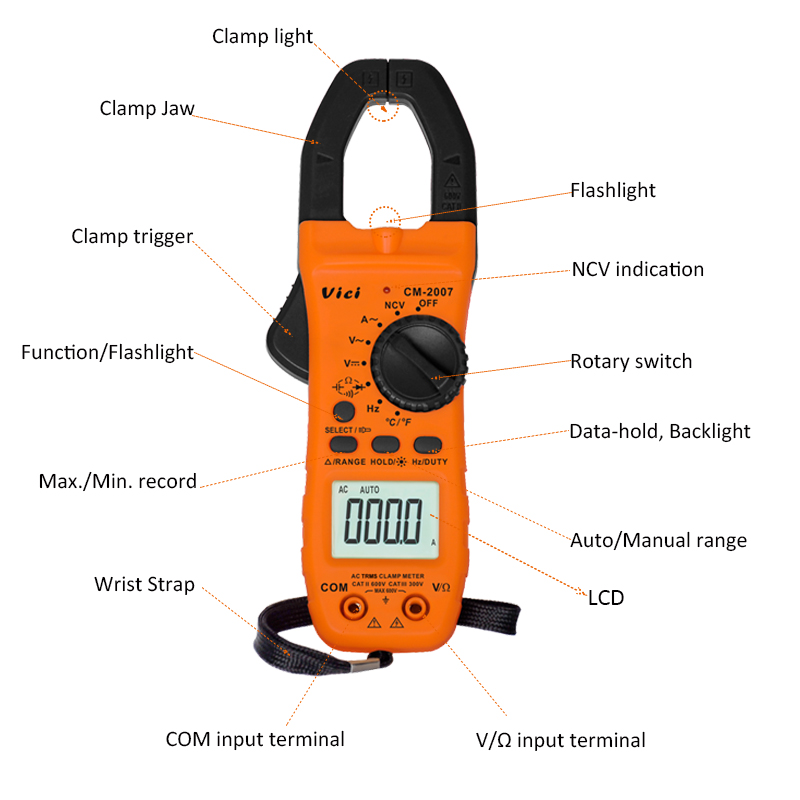

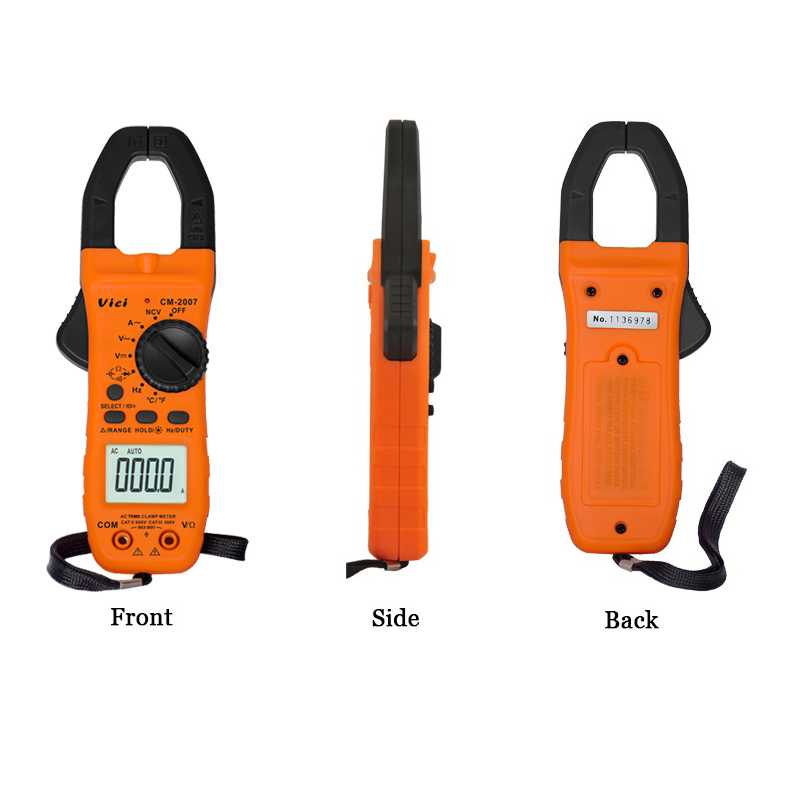

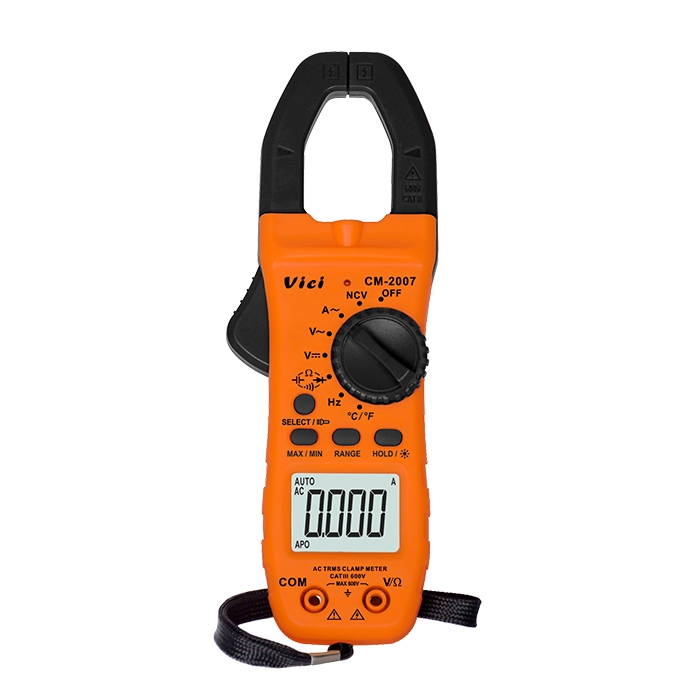

CM-2007 28mm clamp open, 800A True RMS, Capacitance Frequency, Temperature, NCV tests, Backlight, Clamp lighting function.

 CM-2007 clamp meter, available to DC voltage, AC voltage, AC current, resistance, capacitance, frequency, non-contact voltage, temperature, diode and continuity tests; Designed with unit symbol and backlight display, data hold, clamp lighting, auto ranging switch, auto power and alarm functions.
  4000 digits display



    Technical Data:

    Basic function

    Range

    Accuracy

    DCV

    400mV/4V/40V/400V/600V

    +/- (0.5%+5)

    ACV

    400mV/4V/40V/400V/600V

    +/- (1.0%+5)

    ACA

    4A/40A/400A/800A

    +/- (2.0%+5)

    Resistance

    400/4k/40k/400k/4M/40M ohm

    +/- (0.8%+3)

    Capacitance

    4nF/40nF/400nF/4uF/40uF/400uF/4mF/40mF

    +/- (2.5%+5)

    Frequency

    10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

    +/- (0.5%+5)

    Temperature

    -40 to 1000  | -40 to 1832

    +/- (1.0%+5)


    Special Function:

    Model

    CM-2007

    NCV

    YES

    Diode test

    YES

    Continuity alarm

    Less than 30 ohm

    Low battery indication

    Less than 2.4 V

    Data hold

    YES

    Auto power off

    Approx. 15minutes

    Function protection

    YES

    Clamp light display

    YES

    Backlight display

    YES

    Input impedance

    10M ohm

    Sampling rate

    3 times/second

    AC frequency response

    Current (40 to 1000) Hz, Voltage (40 to 2000) Hz

    Operation method

    Auto range

    Max. display

    4000

    Clamp open

    28mm

    Power source

    3V (2pcs #7 batteries)
