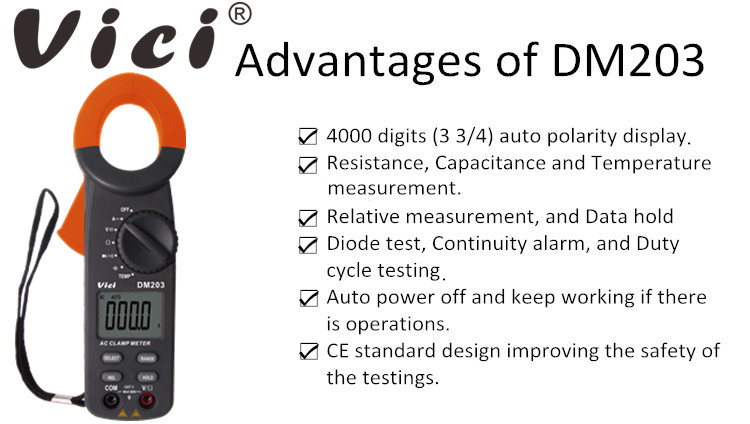

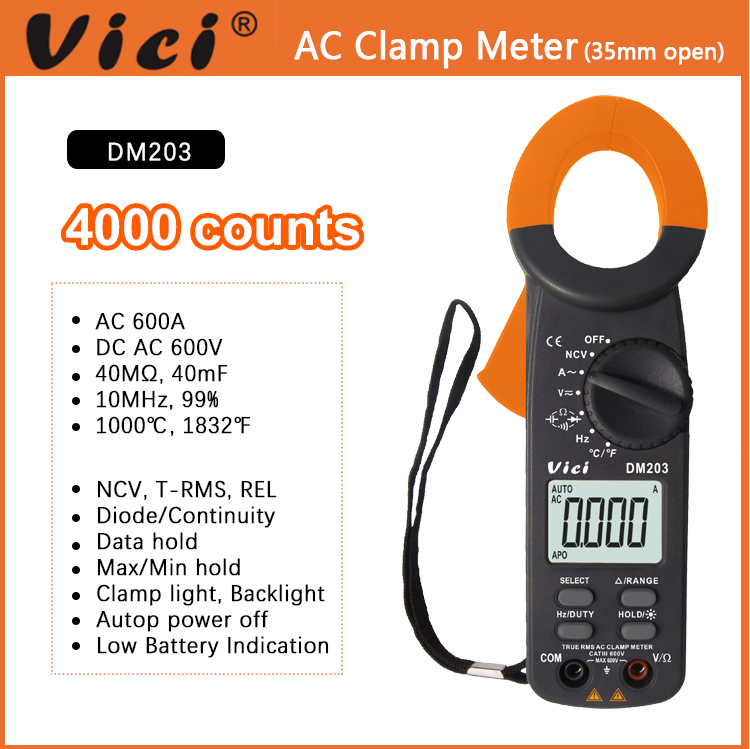

DM203 Clamp open 35mm, True RMS, Capacitance, Frequency, Temperature, NCV tests, Backlight.

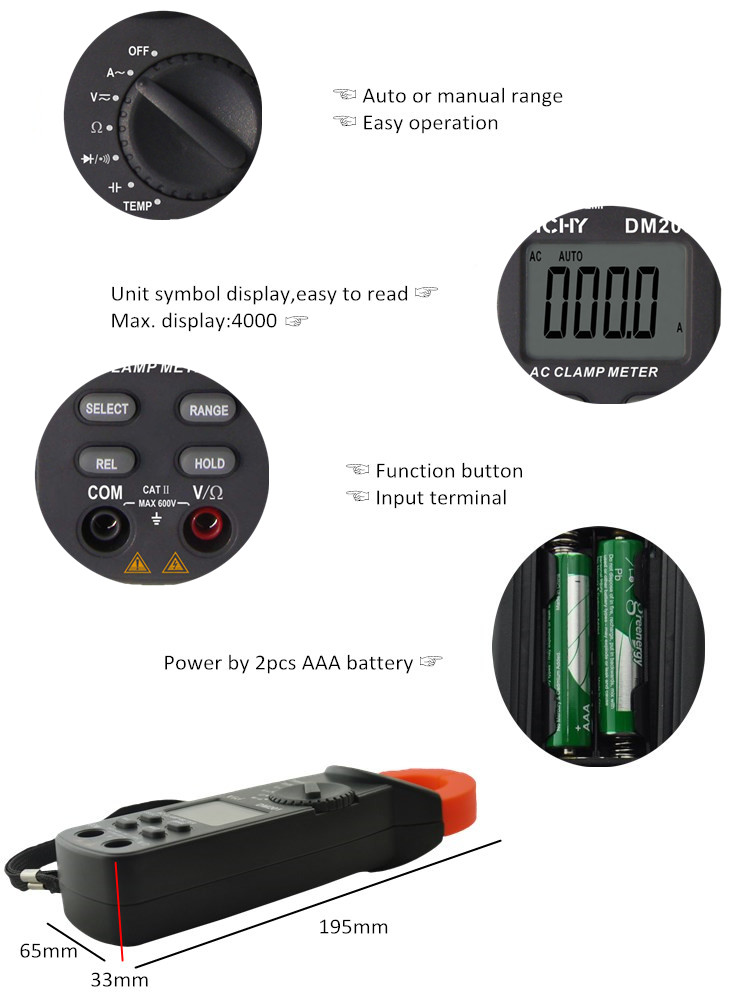

DM203 clamp meter, available to DC voltage, AC voltage, AC current, resistance, capacitance, frequency, non-contact voltage, temperature, diode and continuity tests; Designed with unit symbol and backlight display, data hold, auto ranging switch, auto power off and alarm functions.
40000 digits display
40000 digits display
|
Basic function |
Range |
Accuracy |
|
DCV |
400mV/4V/40V/400V/600V |
+/- (1.0%+5) |
|
ACV |
400mV/4V/40V/400V/600V |
+/- (1.5%+5) |
|
ACA |
4A/40A/400A/600A |
+/- (2.0%+5) |
|
Resistance |
400/4k/40k/400k/4M/40M ohm |
+/- 0.8%+3) |
|
Capacitance |
4nF/40nF/400nF/4uF/40uF/200uF |
+/- (3.0%+10) |
|
Temperature |
(-40 ~ 1000) ℃ | (-40 ~ 1832) ℉ |
+/- (1.0%+5) |
Special Function:
|
Model |
DM203 |
|
NCV |
YES |
|
True RMS |
YES |
|
Diode test |
YES |
|
Continuity alarming |
Less than 50 ohm |
|
Low battery indication |
Approx. less than 2.4 V |
|
Data hold |
YES |
|
Auto power off |
About 15 minutes |
|
Function protection |
Full function protection |
|
Input impedance |
10M ohm |
|
Sampling rate |
3 times /s |
|
AC frequency response |
Current 40Hz-1kHz / Voltage 40Hz-2kHz |
|
Operation method |
Manual or auto range |
|
Max. display |
4000 |
|
Clamp opens |
|
|
Battery |
3V (2×1.5V) |
