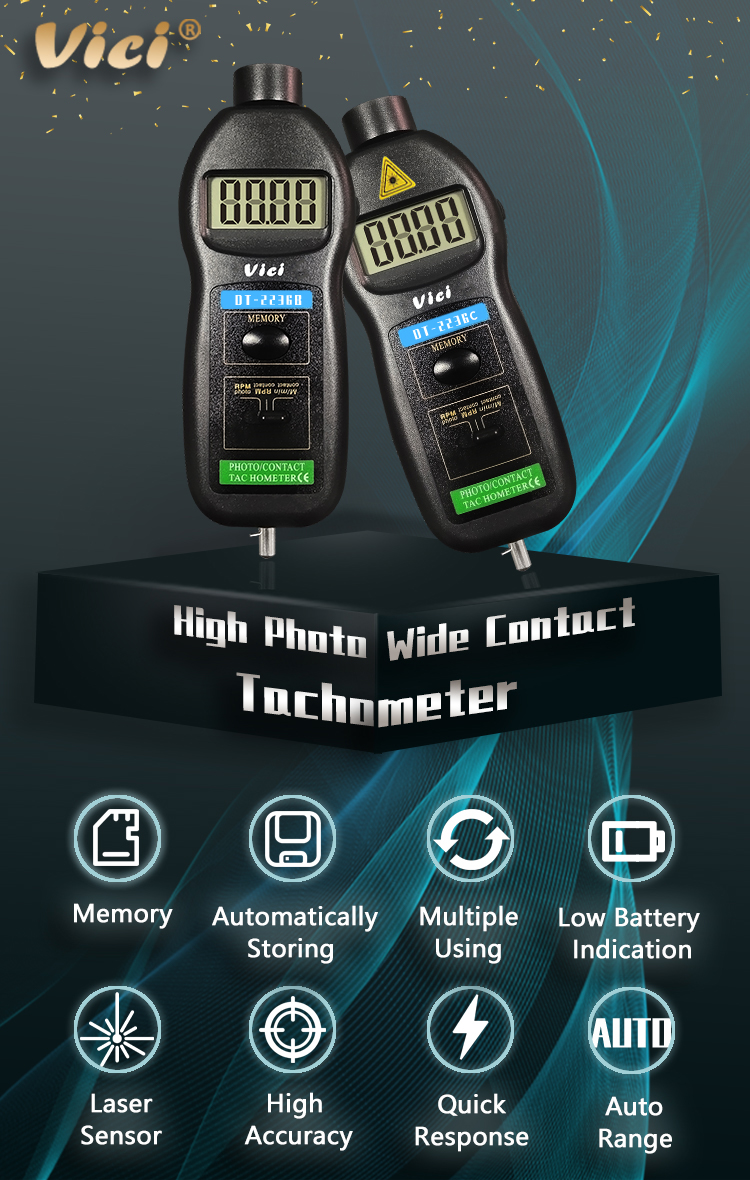

DT-2236C Laser non-contact RPM contact RPM and Surface speed testing Tachometer, Automatically memory Max/Min/Last value, Automatically store data.

    DT-2236C non-contact laser and contact rpm digital tachometer is mainly used for touchless speed testing of rotors such as various engines, motors, speed control devices and wire speed tests of various conveyor belts. It is used in the speed debugging of various devices such as aircraft, ships, EMUs, automobiles, model aircraft, toys, etc.;  and the surface speed debugging of assembly lines and transmission dials.

    Technical Data:

    Basic function

    Range

    Basic Accuracy

    Laser Rotation speed

    2.599999RPM(r/min)

    ±0.05%+1 digit

    Contact Rotation speed

    0.519,999RPM (r/min)

    ±0.05%+1 digit

    Contact Surface speed (metric)

    0.051999.9m/min

    ±0.05%+1 digit



    Special Function:

    Model

    DT-2236C

    Measuring way

    Non-contact Laser & Contact

    Resolution

    Non-contact Laser Rotation speed:

    0.1RPM(2.5999.9RPM)

    1RPM(over 1000RPM)

    Contact Rotation speed

    0.1RPM (0.5999.9RPM)

    1RPM (over 1000RPM)

    Contact Surface speed

    0.01m/min (0.0599.99m/min)

    0.1m/min (over 100m/min)

    Sampling time

    0.8s(over 60RPM)

    Range selection

    Auto switch

    Detecting distance

    50mm 500mm

    Power consumption

    Max. 50mA

    Memory

    Auto memory Max./Min./Last value

    Time Base

    6MHz Quartz crystal

    Circuit

    Exclusive one-chip of microcomputer LS-I

    Accuracy of time base

    10×10-6 (050)

    Battery

    4X1.5V AA Size Battery or to external DC 6V

    Max. display

    99999

    LCD size

    5digits, 18mm high

    Backlight

    Yellow green backlight LCD
