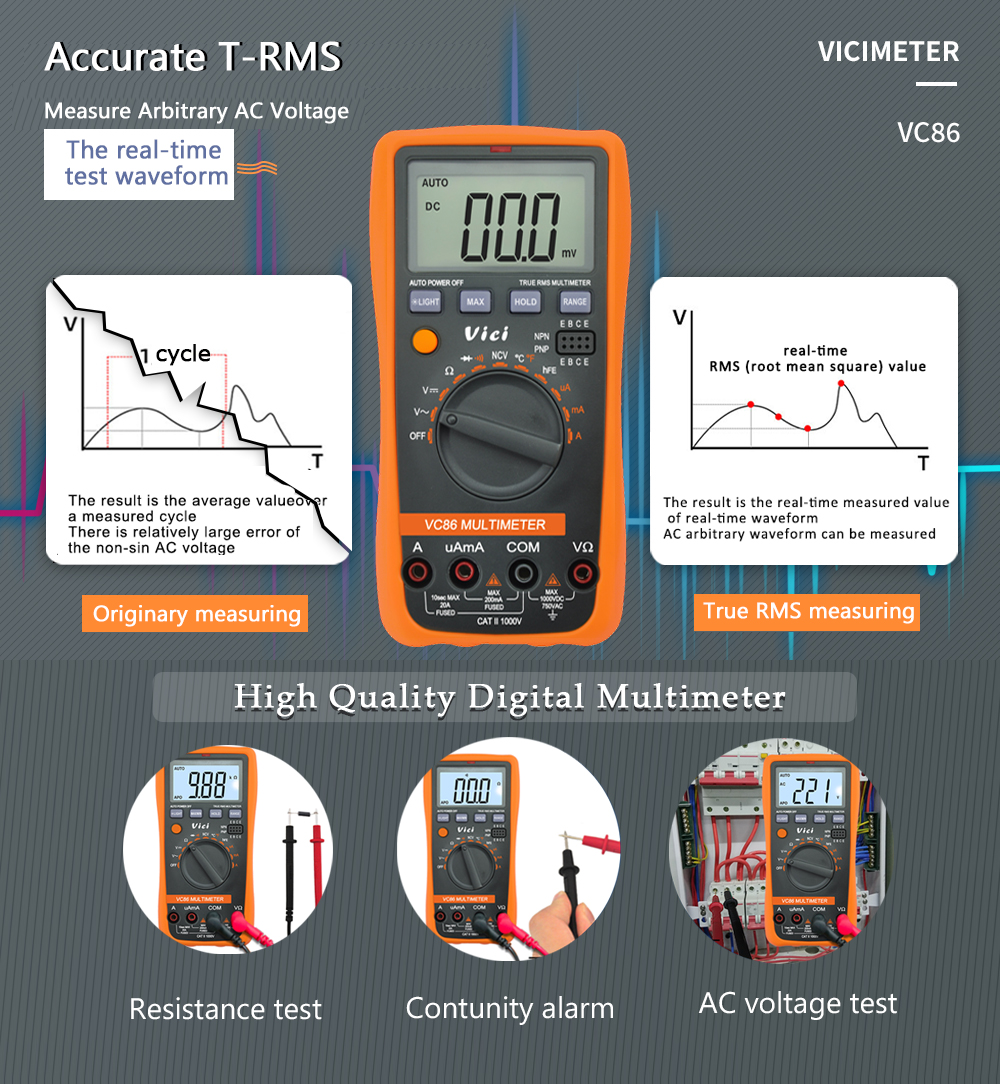

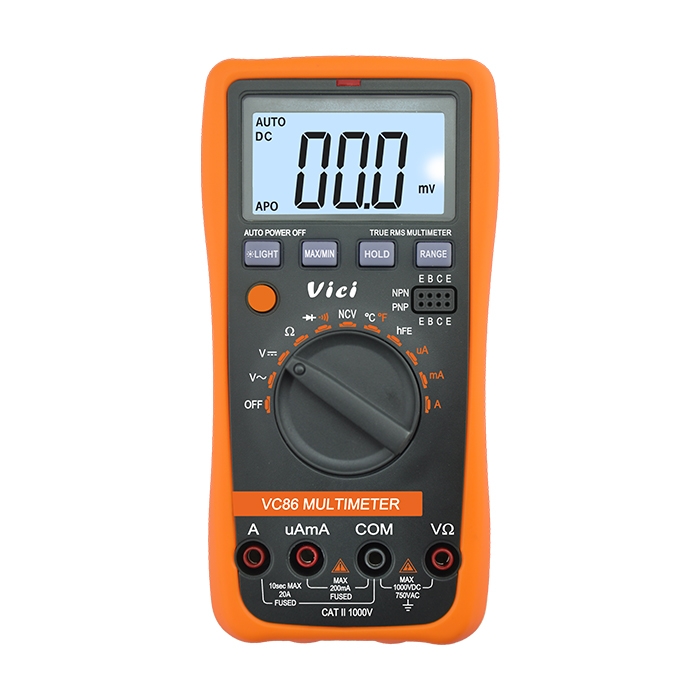

VC86 True RMS, NCV tests, Max/Min tests, Data hold, Backlight.

  VC86 multimeter, available to DC voltage, AC voltage, DC current, AC current, resistance, non-contact voltage (NCV) detecting, temperature, hFE, Diode and continuity tests; Designed with unit symbol, backlight display, data hold, max value, min value tests, auto ranging switch, auto power off and alarm functions.
  2000 digits display


    Technical Data:

    Basic function

    Range

    Accuracy

    DCV

    200mV/2V/20V/200V/1000V

    ±(0.5%+4)

    ACV

    200mV/2V/20V/200V/750V

    ±(0.8%+5)

    DCA

    200uA/2000uA/20mA/200mA /2A/20A

    ±(1.0%+5)

    ACA

    200uA/2000uA/20mA/200mA /2A/20A

    ±(1.5%+5)

    Resistance

    200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

    ±(0.8%+1)

    Temperature

    (-40~ 1000)

    ±(0.8%+4)

    (-40~ 1832)

    ±(1.2%+4)


    Special Function:

    Model

    VC86

    True RMS

    NCV

    Diode and hFE test

    Continuity alarm

    Less than 50Ω

    Low battery indicator

    Approx. less than 2.4 V

    Backlight display, Data hold

    Auto power off

    About 15 minutes

    Function protection

    Input impedance

    10MΩ

    Sampling rate

    3 times/s

    AC frequency response

    40-2kHz

    Operation method

    Auto or manual range

    Max display

    1999

    LCD size

    54x30mm

    Battery

    3V (1.5V AAA×2)

    Power consumption

    Quiescent current about 2mA
